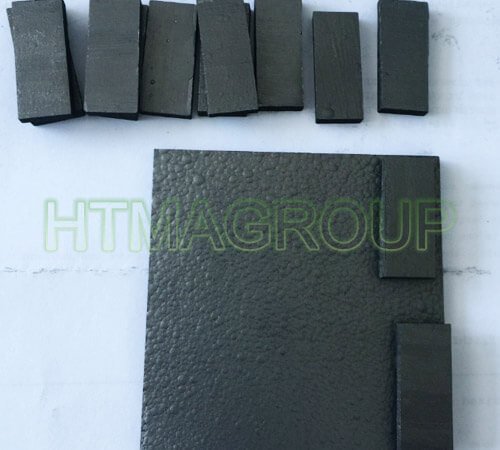

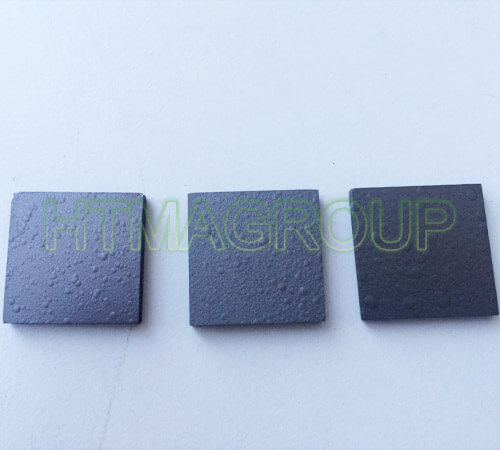

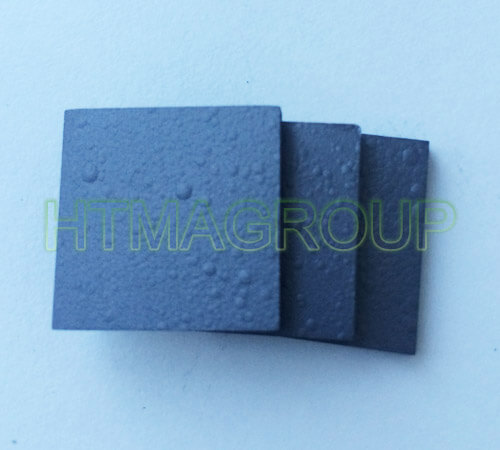

Pyrolytic graphite sheets

Our company can supply pyrolytic graphite sheets with stable and reliable quality. We can produce Pyrolytic graphite sheets with PG grade and HOPG grade. Pyrolytic graphite is a new carbon material, has a high density, high purity and thermal, electrical, magnetic and mechanical properties of anisotropy, at 1800 ℃.

Detailed description

Our company can supply pyrolytic graphite sheets with stable and reliable quality. We can produce Pyrolytic graphite rods/sheets, PG grade and HOPG grade.

Pyrolytic graphite is a new carbon material, is produced with high purity hydrocarbon gas in a certain furnace

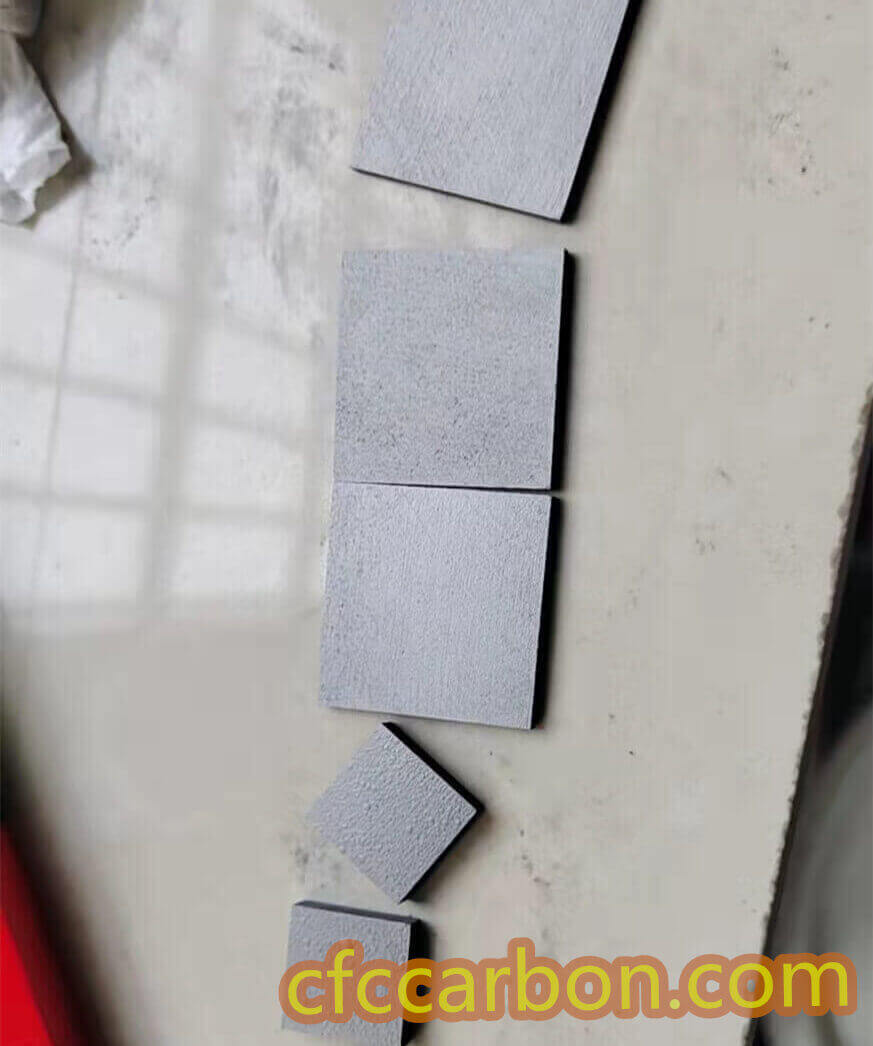

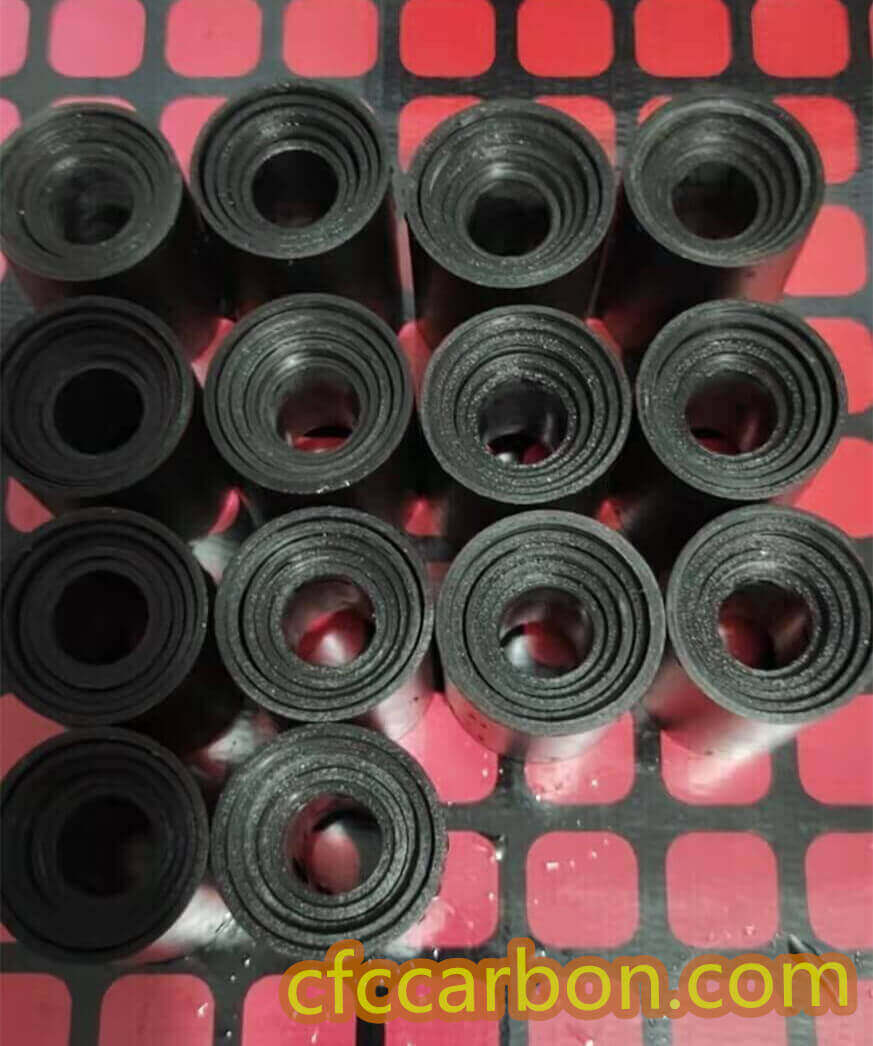

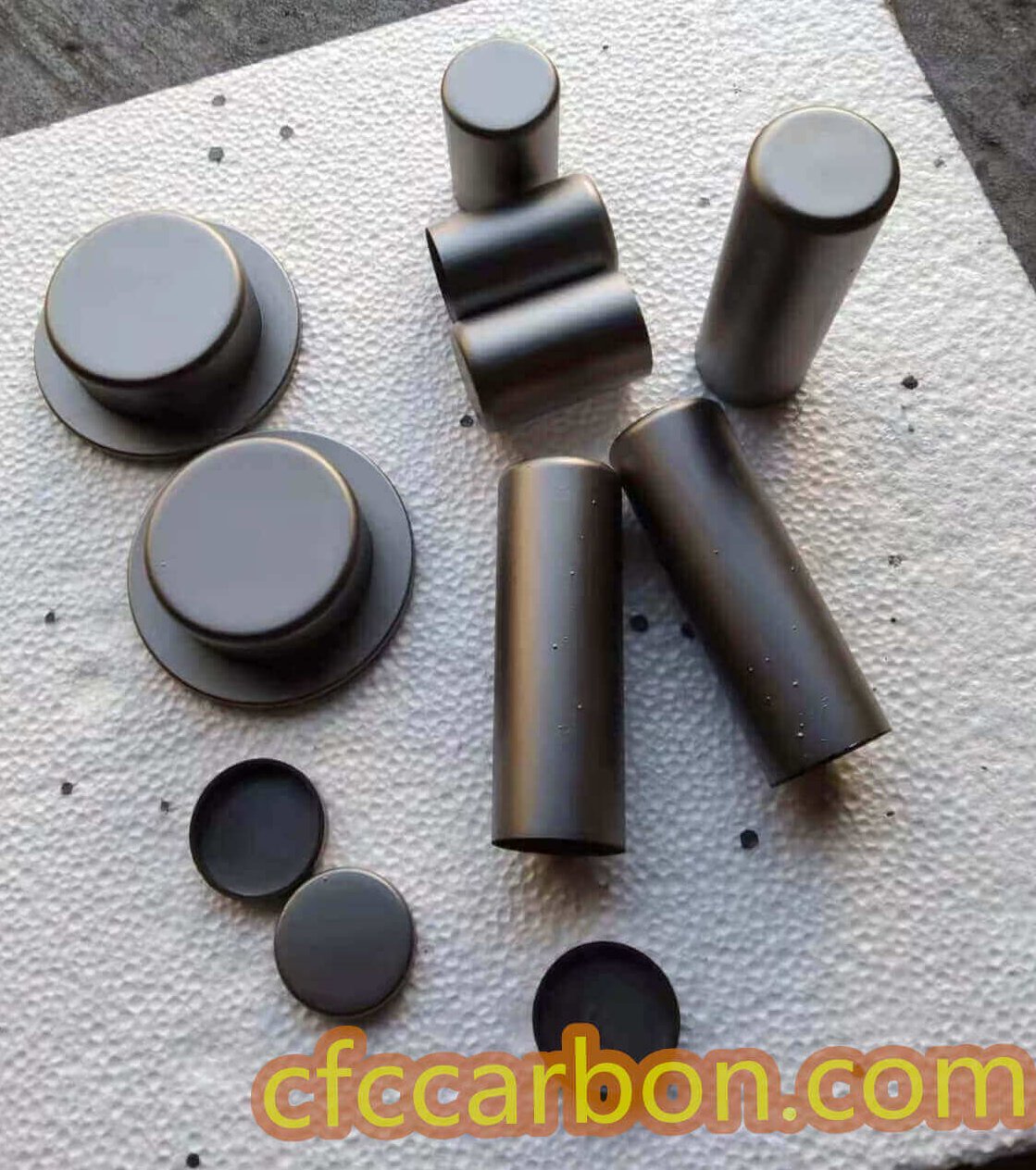

PG sheet-pyrolytic graphite plate disc crucible pipe tube (10)

PG sheet-pyrolytic graphite plate disc crucible pipe tube (10)

pressure, in 1800 ℃ ~ 2000 ℃ on the graphite substrate by chemical vapor deposition of the higher crystalline orientation, which has a high density (2.20g / cm), high purity (impurity content (0.0002%) and thermal, electrical, magnetic and mechanical properties of anisotropy, while still maintaining a vacuum of 10mmHg at 1800 ℃.

Standard Properties of Pyrolytic graphite:
Grade:  Pyrolytic Graphite
Density: 2.18-2.2 g/cm3
Compressive strength: 83.6 Mpa              AB direction
Tensile strength: 75 Mpa                            AB direction
Ash content: 0.02-0.005%
Thermal conductivity: 300-400W/m.k   AB direction
3.5-5 W/m.k            C direction
C.T.E: 3.2×(10-6/℃)                                   AB direction
17-26×(10-6/℃)                                  C direction
Specific resistance: 2×10-4 Ω.cm              AB direction
0.6Ω.cm                        C direction
Distance between Carbon atom layer(002): </= 3.42
Air impermeability: He transmissivity<10-10cm2
Sizes list/range /max:
Dia 90×5mm;
90×90×5mm
90×200×5mm
Max width:180mm, length: 800mm, thickness: 10 mm
Others to be confirm.

See bellow the Pyrolytic carbon anti magnetic levitation experiment:

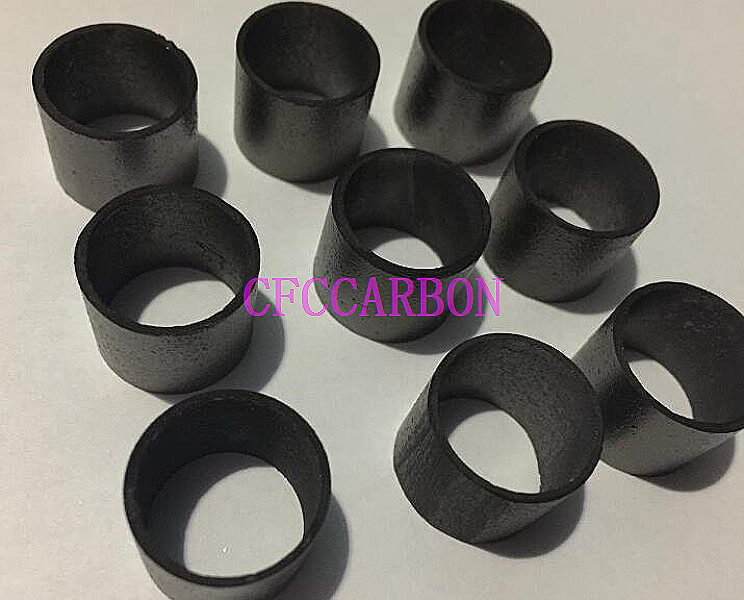

Pyrolytic graphite, Pyrolytic graphite rods, pyrolytic graphite sheets

See the video of PG pyrolytic graphite sheet plate disc pipe crucible at:

Our Products were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world. We hope to establish a good business relationship with you; we will serve you with the best quality, best delivery time and best solutions.
