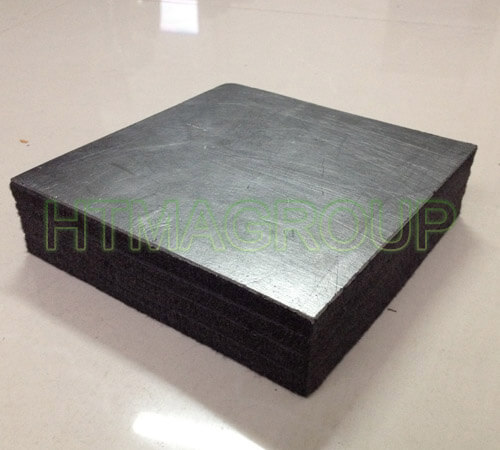

Pan based rigid graphite felt

Our company can supply Pan based rigid graphite felt with stable and reliable quality. We manufacturer rigid graphite felt. Pan based rigid graphite board. Pan rigid graphite felt, with one side cfc or two sides cfc. with one side graphite foil or two sides graphite foil; with processing temperature of 1800C, 2200C and 2600C

Detailed description

We produce Pan based rigid graphite felt with stable & reliable quality and competitively low prices. We manufacture rigid graphite felt, including Pan rigid graphite felt and Rayon rigid graphite felt. Our Pan rigid graphite felt, with one side cfc or two sides cfc, or with one side graphite foil or two sides graphite foil… due to customers’ special request,  with processing temperature of  1100C, 1800C, 2200C and 2600C

Standard properties/ data sheet of Pan rigid graphite felt, with processing temperature of 2200C:
Product name: Pan based rigid graphite felt.

Rigid Graphite Board Specification grade: PRF-3
Property
Density g/cm3 0.18
Carbon Content % >99.9
Ash Content ppm <=200
Flexural Strength Mpa 0.90
Compressive Strength at5% Deformation Mpa 0.07
Thermal Conductivity           1000℃ /1832℉ W/m.k 0.32
1500℃ /2732℉ W/m.k 0.44
2000℃ /3632℉ W/m.k 0.59
Volatile % 0
Electrical Resistivity Perpendicular mΩcm 900
Electrical Resistivity Parallel mΩcm 70
Environment to Use 3600℃/6512℉ in vacuum
Heat Treating Temp 2200
Standard Size (Board) inch 1.6”*40”*60”
Max Size (Board) inch 12”*48”*63”
Max Size (Circular Plate) inch 75”*12”
Max Size (Cylinder) inch 75”*12”*48”(H)

Thickness: 10-150mm. Width/length: 1000mm, 1200mm.

Size details:

name PRF-3
Thickness(mm) 10  /  15  /  20  /  30  /  40  /  50  /  80/150
Width(mm)   1000  /  1200
Length(m) 1000/ 1200 /1500
Attn We can produce as per customers’ special requirements

Our Products were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world. We hope to establish a good business relationship with you; we will serve you with the best quality, best delivery time and best solutions
