Pyrolytic carbon material, pyrolytic graphite material

We are manufacturer of pyrolytic carbon, pyrolytic graphite material in china, with stable and reliable quality. We can produce Pyrolytic graphite material withPG grade and HOPG grade. Pyrolytic graphite is a new carbon material, which has a high density, high purity…

Detailed description

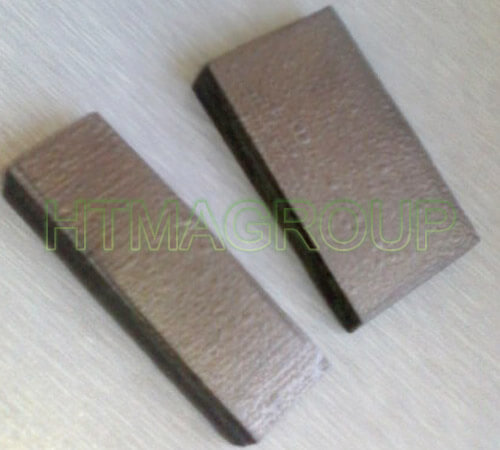

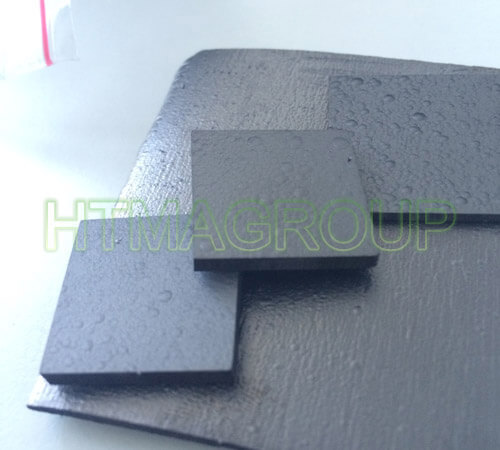

Our company can supply pyrolytic graphite sheets with stable and reliable quality. We can produce Pyrolytic graphite rods/sheets/plates with PG grade and HOPG grade.

Pyrolytic graphite is a new carbon material, is produced with high purity hydrocarbon gas in a certain furnace pressure, in 1800 ℃ ~ 2000 ℃ on the graphite substrate by chemical vapor deposition of the higher crystalline orientation, which has a high density (2.20g / cm), high purity (impurity content (0.0002%) and thermal, electrical, magnetic and mechanical properties of anisotropy, while still maintaining a vacuum of 10mmHg at 1800 ℃.
Standard Properties of Pyrolytic graphite plates:

Grade:  Pyrolytic Graphite
Properties:
Density: 2.18-2.2 g/cm3
Compressive strength: 83.6 Mpa              AB direction
Tensile strength: 75 Mpa                            AB direction
Ash content: 0.02-0.005%
Thermal conductivity: 300-400W/m.k          AB direction
3.5-5 W/m.k               C direction
C.T.E: 3.2×(10-6/℃)                                     AB direction
17-26×(10-6/℃)                                 C direction
Specific resistance: 2×10-4 Ω.cm               AB direction
0.6Ω.cm                      C direction
Distance between Carbon atom layer(002): </= 3.42
Air impermeability: He transmissivity<10-10cm2

Sizes max:
Dia 90×5mm;
90×90×5mm
90×200×5mm
Max width:180mm, length: 800mm, thickness: 10 mm
Others to be confirm.

See the video of pyrolytic graphite pipes bellow:

Pyrolytic graphite, Pyrolytic graphite rods, pyrolytic graphite sheets

See the PG pyrolytic graphite sheet plate disc pipe tube crucible video at:

Our Products were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world. We hope to establish a good business relationship with you; we will serve you with the best quality, best delivery time and best solutions.
