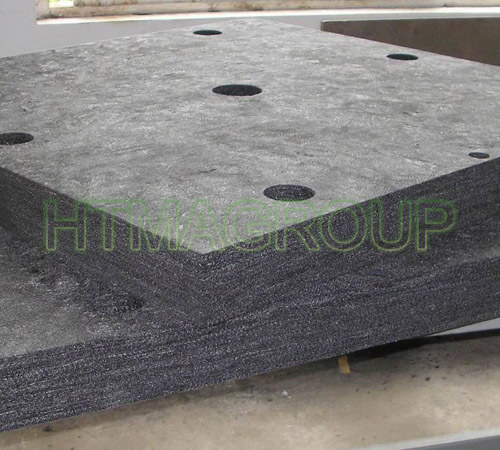

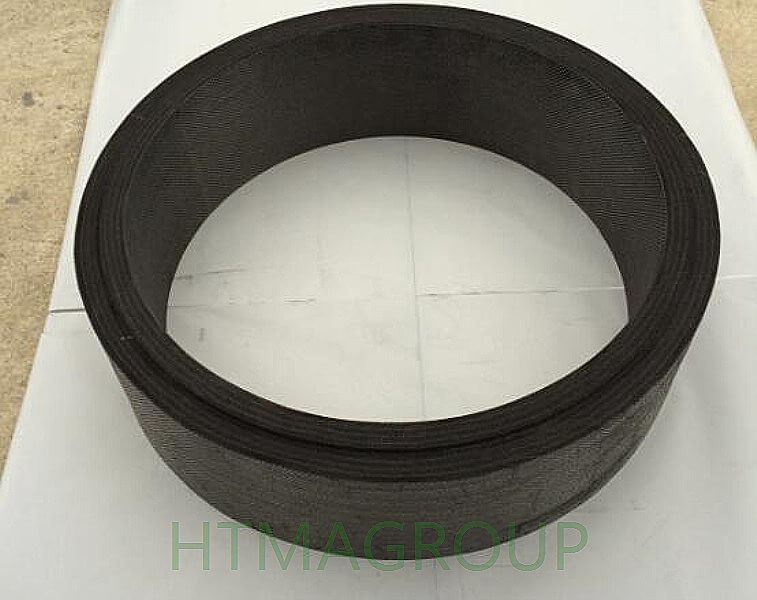

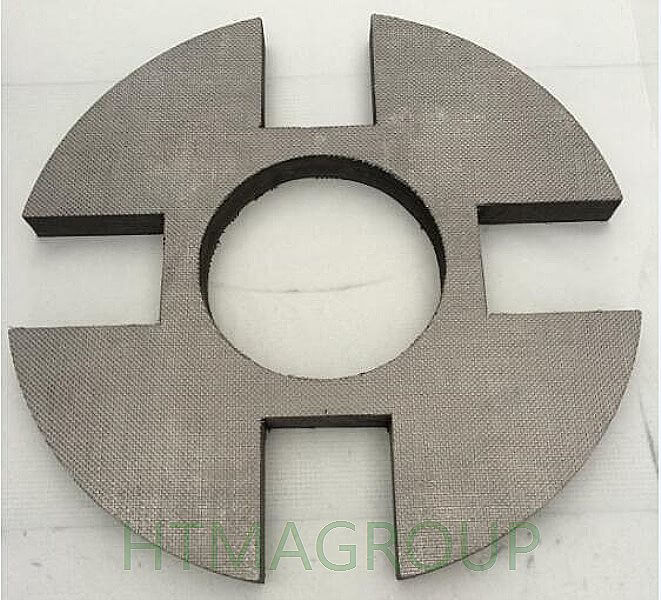

Rigid graphite felt parts, machined rigid graphite felt

Our company can supply rigid graphite felt parts with stable and reliable quality. We manufacturer rigid graphite felt. Pan based rigid graphite board. Pan rigid graphite felt, rayon based rigid graphite felt with one side cfc or two sides cfc. with processing temperature of 1800C, 2200C and 2600C

Detailed description

Our company can supply rigid graphite felt parts with stable and reliable quality. We manufacturer rigid graphite felt: Pan based and Rayon based rigid graphite felt /boards/plates. Pan rigid graphite felt and rayon based rigid graphite felt can be with one side cfc or two sides cfc, or with one side graphite foil or two sides graphite foil; due to customers’ special request.  With processing temperature of 1800C, 2200C and 2600C.

Applications of rigid graphite felt /parts:

All kinds of high temperature heat insulation heat preservation material of vacuum furnace, hot gas or liquid and molten metal filter material,

fuel cell porous electrodes,

catalyst carrier, corrosion resistant containers composite lining,

also can do c/c composites reinforced material.

Widely used in solar power, vacuum metallurgy, chemical industry new materials, atomic energy, semiconductor, electronic energy, etc.

Based on cost-effective quality products and good after-sales service, at present from several countries and regions, covering solar, vacuum metallurgy, aerospace, new materials, new energy can have one more guest is in the field of business cooperation with our company. We will with greater sincerity and enthusiasm, welcome new and old customers come to visit our company to negotiate…

Standard properties/ data sheet of Pan rigid graphite felt, with processing temperature of 2200C:
Product name: Pan based rigid graphite felt.

Rigid Graphite Board Specification grade: PRF-3
Property
Density g/cm3 0.18
Carbon Content % >99.9
Ash Content ppm <=200
Flexural Strength Mpa 0.90
Compressive Strength at5% Deformation Mpa 0.07
Thermal Conductivity           1000℃ /1832℉ W/m.k 0.32
1500℃ /2732℉ W/m.k 0.44
2000℃ /3632℉ W/m.k 0.59
Volatile % 0
Electrical Resistivity Perpendicular mΩcm 900
Electrical Resistivity Parallel mΩcm 70
Environment to Use 3600℃/6512℉ in vacuum
Heat Treating Temp 2200
Standard Size (Board) inch 1.6”*40”*60”
Max Size (Board) inch 12”*48”*63”
Max Size (Circular Plate) inch 75”*12”
Max Size (Cylinder) inch 75”*12”*48”(H)

Thickness: 10-150mm. Width/length: 1000mm, 1200mm.

Size details:

name PRF-3
Thickness(mm) 10  /  15  /  20  /  30  /  40  /  50  /  80/150/200
Width(mm)   1000  /  1200
Length(m) 1000/ 1200 /1500
Attn We can produce as per customers’ special requirements
