CFCCARBON LTD can produce large amount of moulded graphite | molded graphite material with stable and reliable quality, Our Products were sold throughout the country and exported to Europe, America, Southeast Asia and other countries and regions which enjoy a high reputation all over the world.
All sizes available, standard bulk density of molded graphite material: 1.78g/cm3; 1.85g/cm3; 1.90g/cm3.
moulded graphite manufacturer
The grade with 1.78g/cm3 is named M1. Please see the data sheet bellow:
Product name: Molded graphite
Grade: M1
Chemical Composition ：
C > 99.9%
Ash <0.1%
Mechanical Propriety:
Apparent Density > 1.78g/cm3
Specific resistance（μΩm）≤ 10
Hardness > (Shore) 35-48
Thermal Expansion > 2.5×10/K (35-450C )
Young Modulus : 12000N/mm
Thermal Conductivity : 120 w/m.k
Pressing Strength: 35-45Mpa,
Bending Strength: 25-30

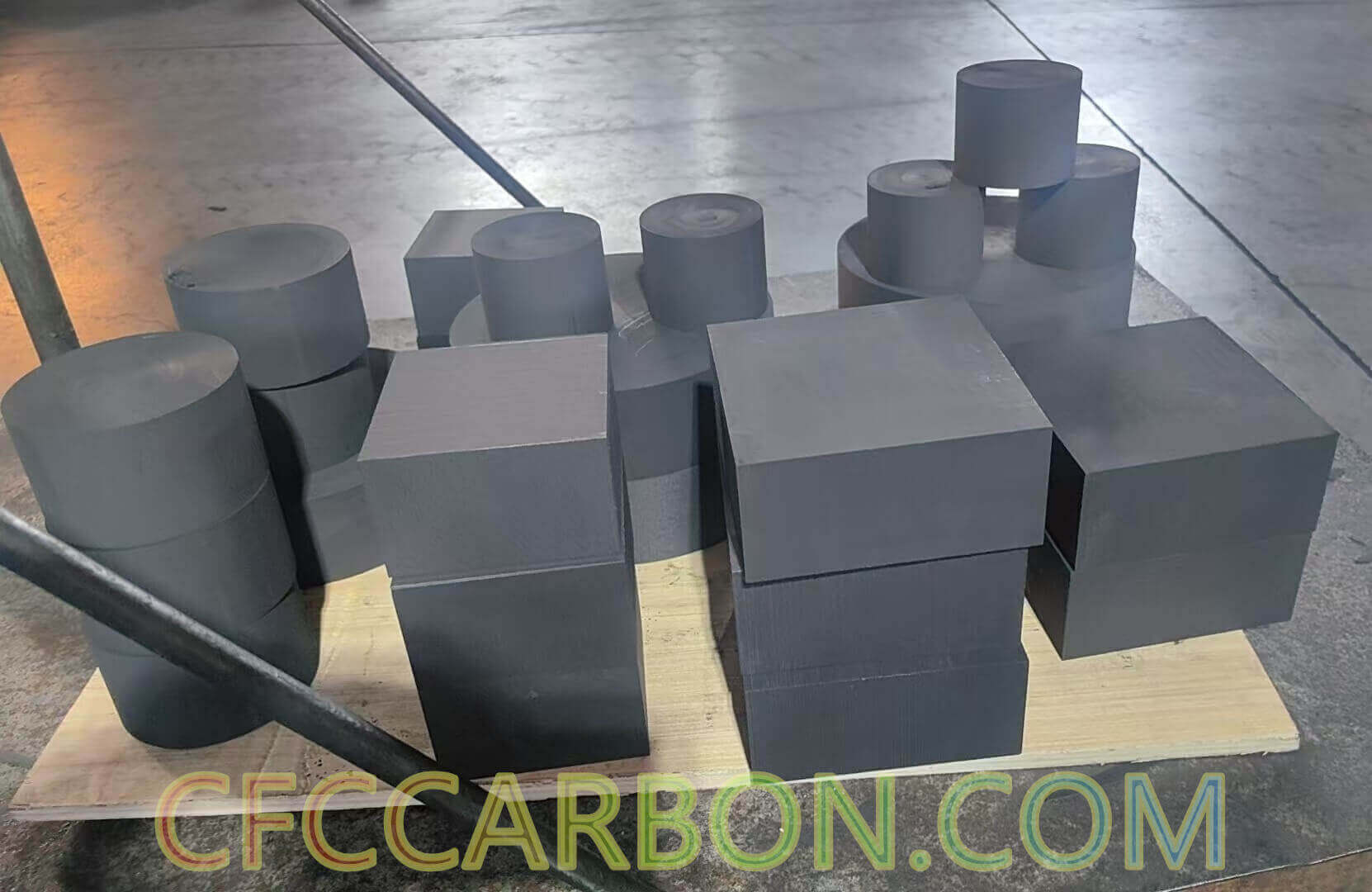

isostatic graphite rods blocks plates material manufacturer factory China
Ash Contents < 0.08%
Grain size: 45μm
Molded graphite material have good electrical conductivity, high temperature resistance, corrosion resistance, high purity, self lubrication, thermal shock, isotropic, easy to precision machining and other excellent features.
Molded graphite is widely used in aerospace, solar photovoltaic and semiconductor, cast hard alloy and electronic mold sintering, spark, glass, medicine and other industries.
Reliable quality, good reputation, best service and high technologies are out eternal objectives. We will serve our customers with the best suitable quality, best delivery time and best solutions.
